Filter housings for every need and a safety regulating valve that really works.

All of COMO’s housing assemblies are chrome-plated steel and designed to stand up to demanding fluid pressure. Need to install a COMO low-pressure filter vessel directly on a high-pressure system? No problem. Our safety valve maintains a maximum 60 PSI in your housing with constant flow for continuous contamination control.

COMO Filtration manufactures high-performing, long-lasting offline filter housings that meet and exceed all your filtration needs. These durable, reliable filter housings are expertly engineered, skillfully constructed and rigidly tested to ensure they meet your exact specifications and keep your fluid clean.

Product Table


Product Specifications	C-150	C-500	C-750	C-1000	Safety Valve
Flow (GPM)	≤ 1.0 GPM	≤ 1.5 GPM	≤ 2.0 GPM	≤ 2.5 GPM	0.5 - 2.5 GPM
Assembly Dimensions	9"W x 7"D x 13"H	12W" x 10"D x 15"H	12W" x 10"D x 20"H	12"W x 10"D x 25"H	12"W x 10"D x 33"H
Weight	11 lbs	18 lbs	22 lbs	26 lbs	30 lbs
Minimum Fluid Pressure	40 PSI	40 PSI	40 PSI	40 PSI	100 PSI
Maximum Fluid Pressure	80 PSI	80 PSI	80 PSI	Standard: 80 PSI \| Heavy Duty: 150 PSI \| Super HD: 300 PSI	Aluminum: 3,000 PSI \| Steel: 5,000 PSI
Material (Standard)	Chrome Plated Steel	Chrome Plated Steel	Chrome Plated Steel	Chrome Plated Steel	Aluminum (3,000 PSI)
Material (Optional)	Powder Coated Steel	Powder Coated Steel	Powder Coated Steel	Powder Coated Steel and Stainless Steel	Steel (5,000 PSI)
Applications	Engine Oil	Engine Oil	Engine Oil	Engine Oil and Compressor Oil	Hydraulic Fluid

C-150
Flow (GPM)	≤ 1.0 GPM
Assembly Dimensions	9"W x 7"D x 13"H
Weight	11 lbs
Minimum Fluid Pressure	40 PSI
Maximum Fluid Pressure	80 PSI
Material (Standard)	Chrome Plated Steel
Material (Optional)	Powder Coated Steel
Applications	Engine Oil
	Learn more

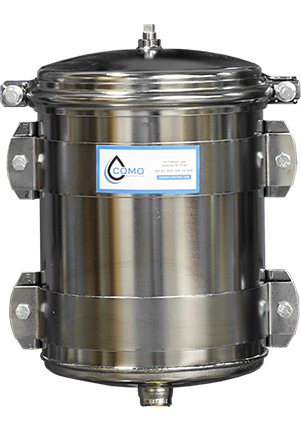

C-500
Flow (GPM)	≤ 1.5 GPM
Assembly Dimensions	12W" x 10"D x 15"H
Weight	18 lbs
Minimum Fluid Pressure	40 PSI
Maximum Fluid Pressure	80 PSI
Material (Standard)	Chrome Plated Steel
Material (Optional)	Powder Coated Steel
Applications	Engine Oil
	Learn more

C-750
Flow (GPM)	≤ 2.0 GPM
Assembly Dimensions	12W" x 10"D x 20"H
Weight	22 lbs
Minimum Fluid Pressure	40 PSI
Maximum Fluid Pressure	80 PSI
Material (Standard)	Chrome Plated Steel
Material (Optional)	Powder Coated Steel
Applications	Engine Oil
	Learn more

C-1000
Flow (GPM)	≤ 2.5 GPM
Assembly Dimensions	12"W x 10"D x 25"H
Weight	26 lbs
Minimum Fluid Pressure	40 PSI
Maximum Fluid Pressure	Standard: 80 PSI \| Heavy Duty: 150 PSI \| Super HD: 300 PSI
Material (Standard)	Chrome Plated Steel
Material (Optional)	Powder Coated Steel and Stainless Steel
Applications	Engine Oil and Compressor Oil
	Learn more

Safety Valve
Flow (GPM)	0.5 - 2.5 GPM
Assembly Dimensions	12"W x 10"D x 33"H
Weight	30 lbs
Minimum Fluid Pressure	100 PSI
Maximum Fluid Pressure	Aluminum: 3,000 PSI \| Steel: 5,000 PSI
Material (Standard)	Aluminum (3,000 PSI)
Material (Optional)	Steel (5,000 PSI)
Applications	Hydraulic Fluid
	Learn more

Additional Details

COMO housings are generally low-pressure housings (80 PSI is our standard) and are Low pressure, engine oil, bypass filter housings. They are typically used on:

Engine Oil
Compressor Oil

We also supply a superior safety regulating valve that delivers the performance you require when installing a COMO low-pressure filter vessel directly on a high-pressure system. Our safety valve continuously controls contamination by maintaining a constant flow with a maximum 60 PSI in your housing. They are meant for High pressure, hydraulic oil, bypass/offline filter housings and are generally used for:

Hydraulic Fluids

Features

Our housing assemblies include an array of standard and optional features:

Chrome-plated steel construction (standard)
Powder-coated steel, stainless steel (optional)
Withstand demanding fluid pressure
Four different model sizes available
Lube housing maximum fluid pressure: 80 PSI (150 PSI or 300 PSI option)
Hydraulic Safety Valve maximum fluid pressure: 3,000 PSI (5,000 PSI option)

Our dedicated technical experts will work closely with you to assess your situation, determine what products work best for you, and ensure equipment is installed safely and smoothly.

Experience, Expertise, & Equipment

Delivering the service you deserve
Here’s the unfiltered, pure truth: COMO Filtration manufactures the best filtration systems on the market. We have the experience, expertise and equipment to design, develop and deliver filtration systems providing the best quality and the best value for you.

Experience

Family owned and operated
Founded in 1982 – almost four decades of industry experience
Products available across the globe

Expertise

Devoted to filtration – it’s all we do and we know how to do it right
Dedicated experts who can assess your situation, determine what products work best for you, and ensure equipment is installed safely and smoothly
Can handle any size order – from a small, one-machine shop to large-scale operations with hundreds of machines
Offer a broad dealer network that boasts dedicated professionals who know our products

Equipment

Headquartered in the heartland of American – in Janesville Wisconsin
All frames, filters, housings and filtration systems expertly manufactured in the U.S.A.
