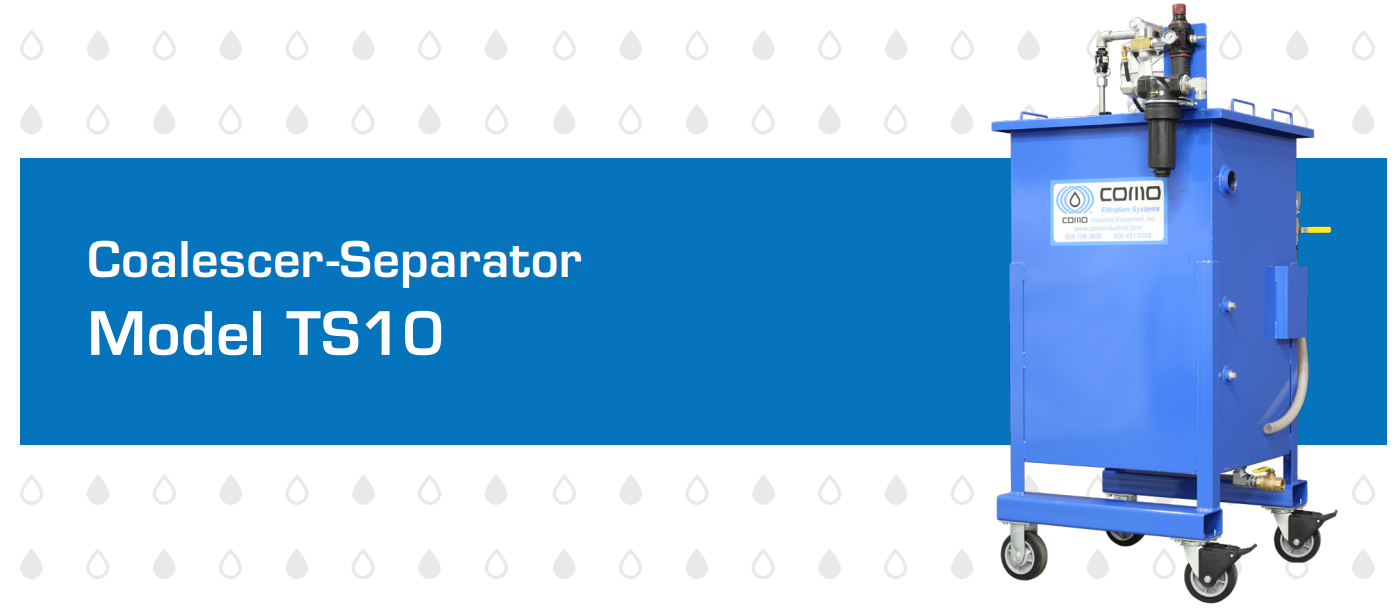

Coalescer-Separator – Model TS10

dedicated-filtration-system-model-165-true

Turnkey Filter Cart

The TS10 is a coalescer-separator designed to remove
tramp oils from metalworking fluids and wash-water. We
build our systems with larger separation tanks and more
coalescing media than the competition. This ensures COMO
can remove tramp oil, prevent microbial growth, and extend
fluid life in the most difficult applications.

This Product Recycles

  • Coolant
  • Cutting fluid
  • Grinding fluid
  • Stamping fluid



  • Parts washer fluid
  • Polymer quenchant
  • Many other industrial fluids

Specifications

  • 10 GPM, 1″ air diaphragm pump with poly body
  • Portable, powder-coated steel tank
  • 100 gallon separation-tank with PVC coalescing media
  • Clean fluid discharge height of 37″
  • Temperature rating of 140°F (60°C)
  • Dimensions: 32′ W x 36″ D x 70″ H
  • Approximate weight: 450 lbs.

Standard Features

  • Air filter & regulator to control inlet air pressure
  • Needle valve to adjust pump cycle-speed and fluid flow rate
  • Adjustable oil-gate for tramp oil removal
  • COMO Dual Weir floating pickup
  • Hanging inlet bag-filter
  • 5″ heavy duty wheels
  • Inlet tee strainer to protect pump

Don’t let tramp oils and microbes destroy your fluid and stink-up your shop.
Extend fluid life and improve part quality by using a COMO TS10.

Request a quote today!

Complete the form below to get in touch with COMO Filtration Systems about the Model TS10 Coalescer-Separator.
