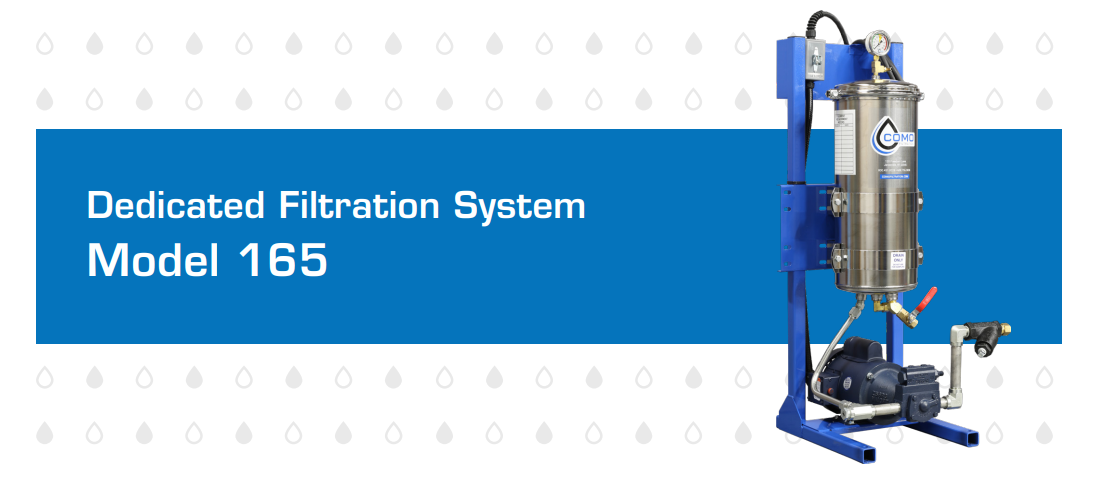

Stationary Filtration System – Model 165

Dedicated Filter Model 165

Turnkey Filter

The Model 165 is designed for kidney-loop filtration of a
single machine. With dozens of filter options, you can meet
your exact cleanliness goals—as low as 1 µm and 20 ppm
water. Each COMO Filter holds up to 20 pounds of dirt
and 1 gallon of water, so you can extend fluid life and reduce
downtime with fewer filter changes than the competition.

This Product Filters

  • Hydraulic oil
  • Gear oil
  • Lube oil
  • Turbine oil
  • Transformer oil
  • Engine oil
  • Vacuum pump oil
  • Fire-resistant hydraulic oil
  • Many other industrial fluids

Filter Skid Specifications

  • One C-1000 chrome-plated depth-filter housing
  • 1 or 3 GPM iron gear pump with Buna-N mechanical seals
  • 3/4 HP, 115 V, single-phase, 60 Hz, 1725 RPM, TEFC Motor
  • Freestanding, powder-coated frame
  • Dimensions: 18” W x 20” D x 44” H
  • Approximate weight: 130lbs.

Filter Skid Standard Features

  • Toggle switch motor starter
  • Pressure gauge to monitor filter element life
  • Frame with bolt holes for floor mounting capability
  • Inlet wye strainer to protect pump
  • Internal pressure relief in pump
  • Stainless-steel element filter

Don’t let particulate & water contamination destroy your oil and damage your machines. Reduce downtime and maximize productivity by using the COMO Model 165. Maximize fluid life, increase efficiency and minimize equipment downtime with premium industrial filtration solutions designed to meet your exact requirements. Meet COMO Filtration Systems. Ready to solve any filtration challenge, no matter how big or small, with on-demand engineering and industry expertise.
